Heavy Power Screw-on Standard Type Wire Connector

Standard Type Screw-On Wire Connectors

UL 486C Listed and CSA 22.2 No.188 Certified. Tough thermoplastic, UL 94V-2 flame-retardant shell. Zinc-plated square wire spring. Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs. Five color-coded to industry standards. No pre-twisting required, push stripped conductors into connector and screw on.

Item: Screw-On Wire Connectors

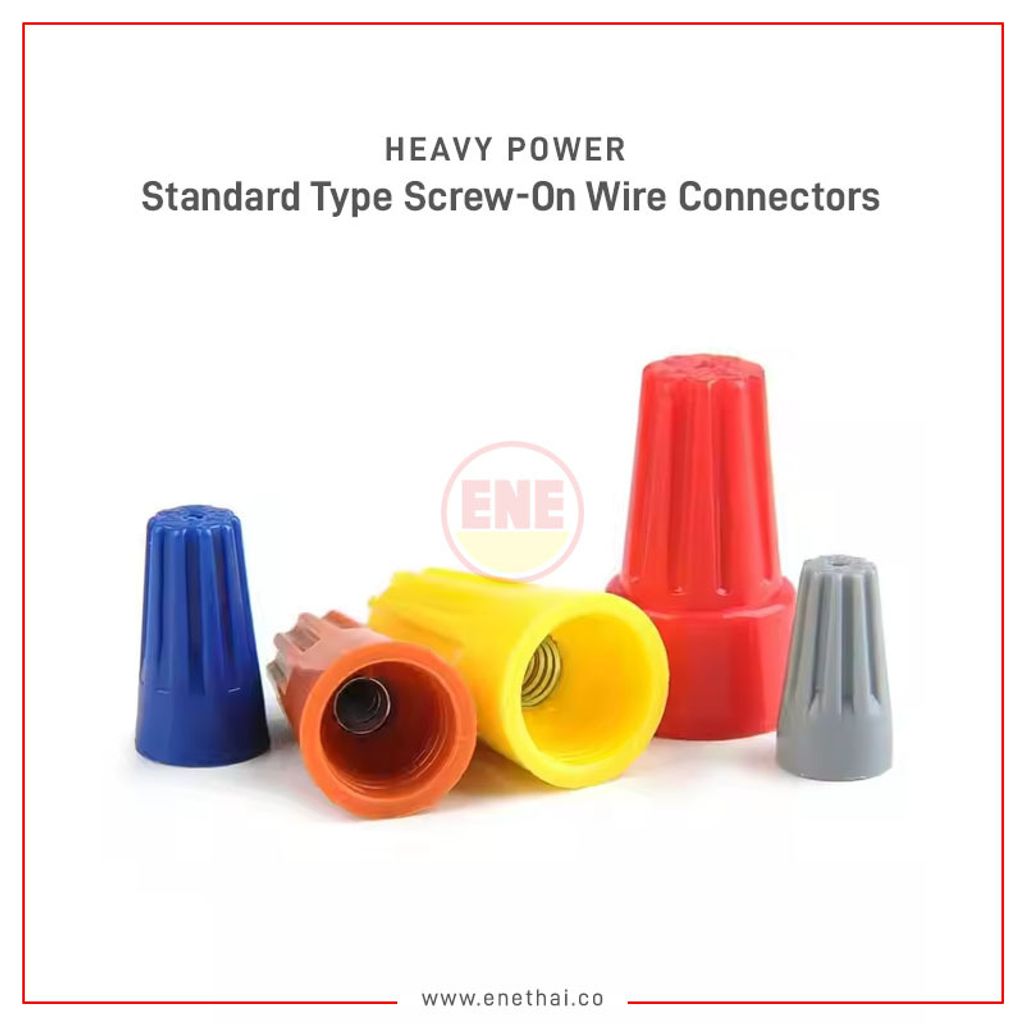

Color: Grey, Blue, Orange, yellow, Red
Advantages:
● For use in electrical appliances, lighting, and building wiring.
● Fixed, precise square wire spring provides more secure gripping on conductors.
● Reusable for easy circuit changes and additions.
● Available in socket tools for easy installation of connectors.

Cat. No.	Color	Dimension	Electrical Rating	Clamping Area Wire Range	Approval

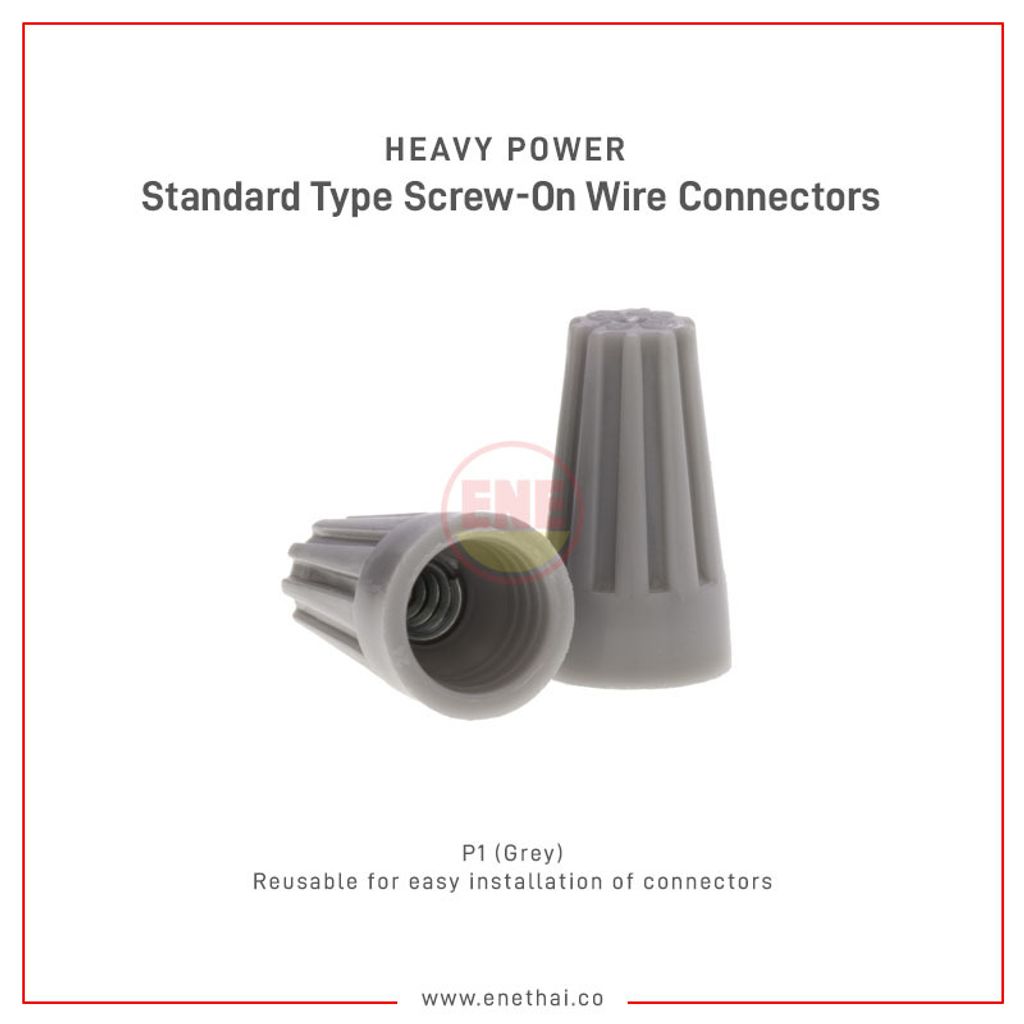

P1	Grey		300V Max. 105°C (221°F)	22-14 AWG, Cu Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22
P2	Blue			22-14 AWG, Cu Max.3 #16 Min. 2 #22

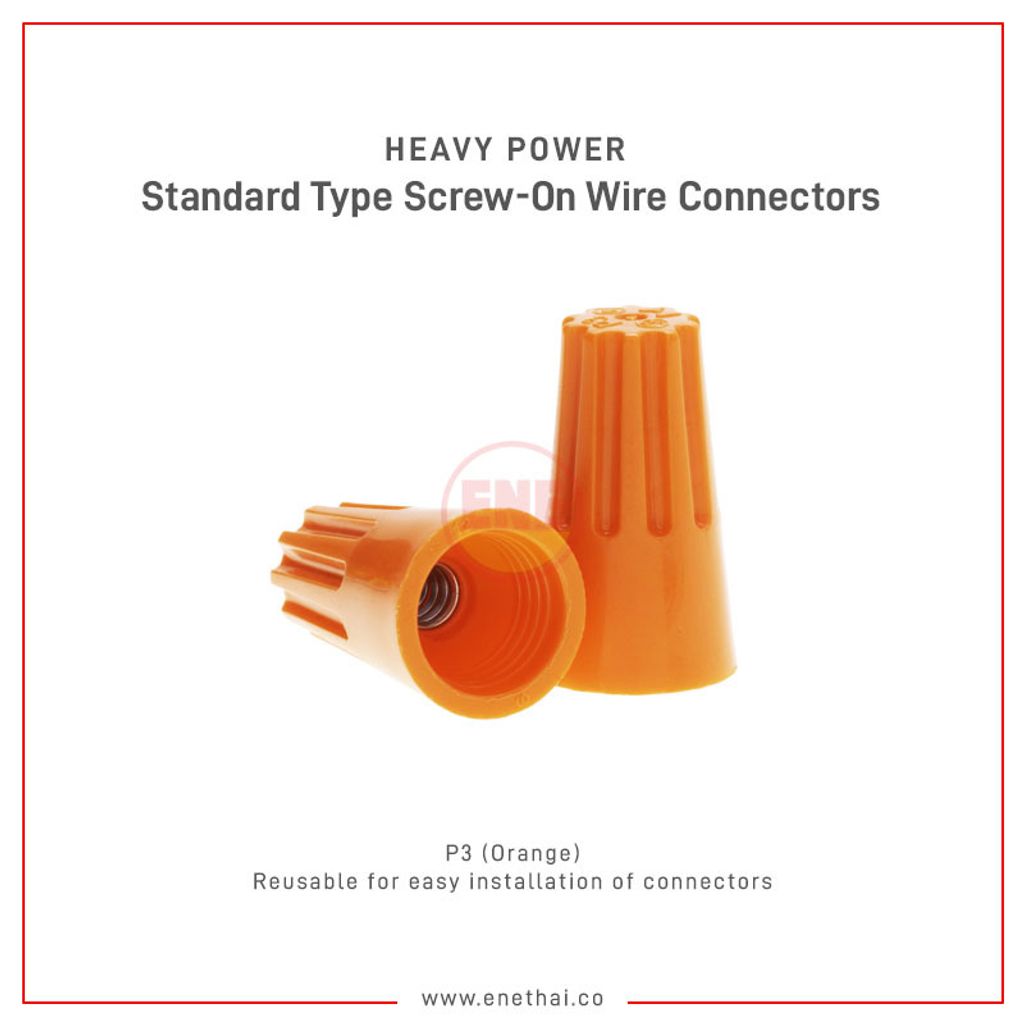

P3	Orange		300V / 600V Max. 105°C (221°F)	22-14 AWG, Cu Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20
P4	Yellow		600V Max. 105°C (221°F)	22-8 AWG, Cu Max. 2 #12 w/2 #14 Min. 3 #20
P6	Red		300V / 600V Max. 105°C (221°F)	22-10 AWG, Cu Max. 2 #10 Sol w/2 #12 Str Min. 3 #18
