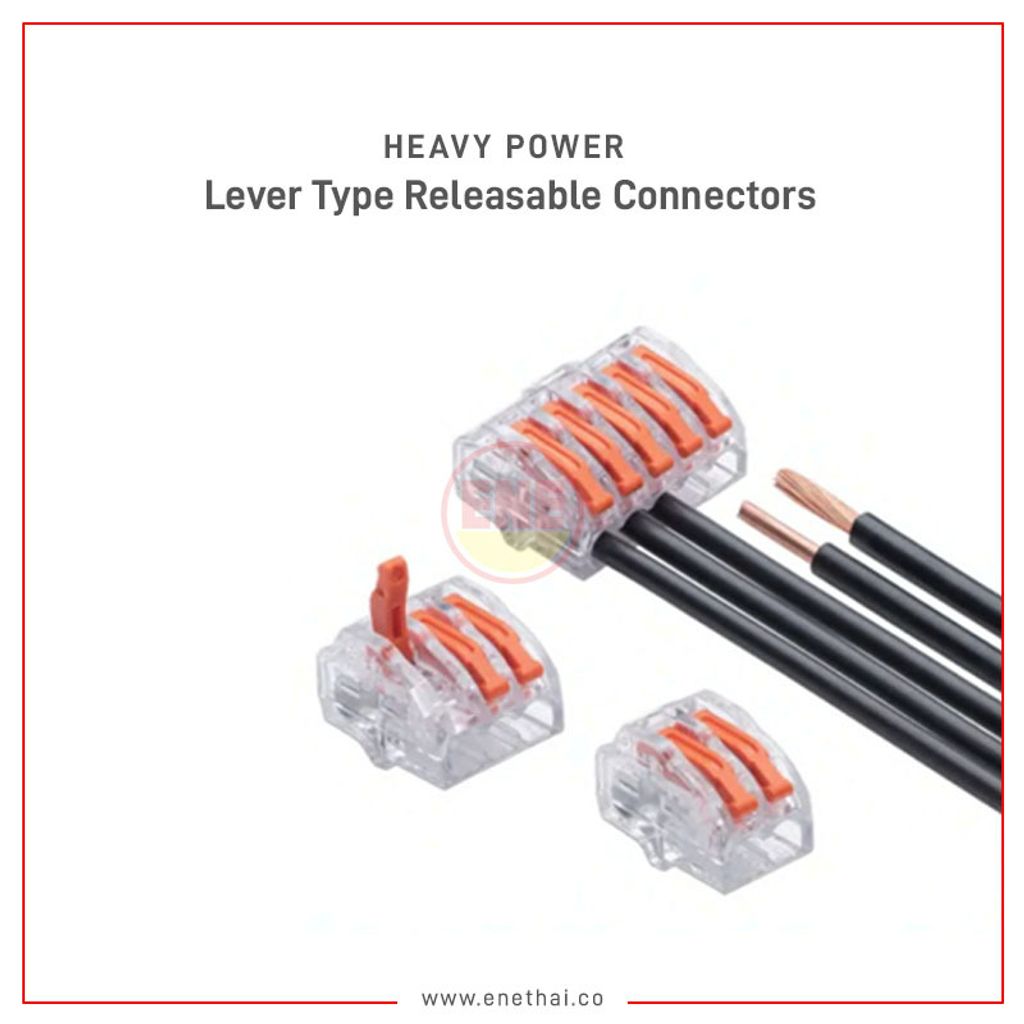

Heavy Power Lever Type Releasable Connectors (Orange)

Lever Type Releasable Connectors PC62 Series

Polycarbonate (PC) and Polyamide (PA), UL 94V-0 flame retardant shell rated at T85 (IEC), 105°C (UL). Spring force connector constructed from tinned copper plate and stainless spring steel. No tools are required. Push the orange levers to 90°, insert conductors, and then put the levers back in place. Accept any combination of solid, stranded, and flexible conductors from 0,2 mm²/28 AWG up to 4,0 mm²/12 AWG. Clear shell gives visual verification of connection. IEC/EN 60998 Certified and UL 486C Listed.

Color: Transparent housing, Orange color levers
Advantages :
● Re-usable and for use with rigid/solid and flexible/stranded conductors.

Cat. No.	Poles	Electrical Rating	Clamping Area Wire Range	Approval

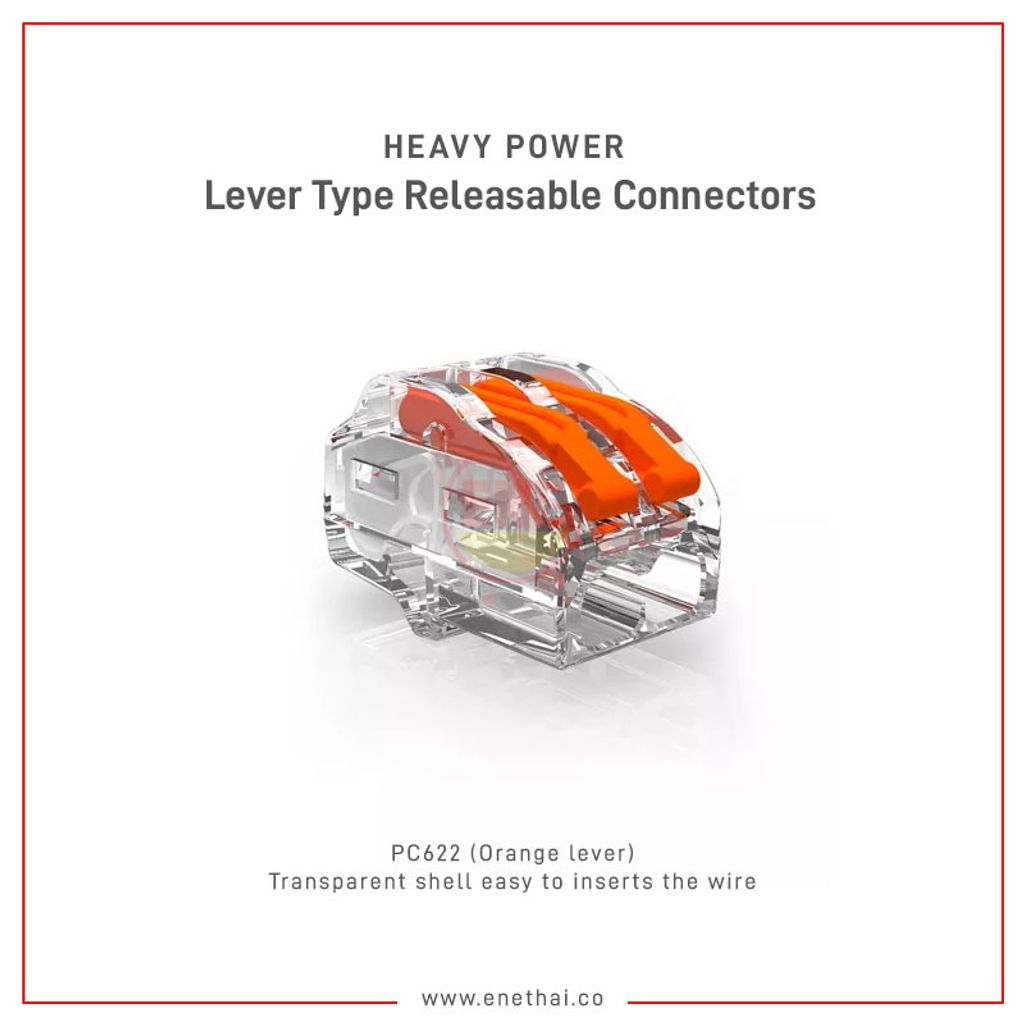

PC622	2	32A, 450V, T85 600V, 105°C (221°F)	0.2 ~ 4.0mm² Rigid/ Flexible --------------------------------- 28~14 AWG, Sol/Str Cu 12 AWG, Sol Cu
PC623	3
PC625	5
