Heavy Power Compact Type Push-in Wire Connectors

Compact Type PC225 Series

25% more compact in size than original types with cost-saving effectiveness. For use with rigid/solid conductors. Polycarbonate and Polyamide, UL 94V-0 flame-retardant shell. The spring force connector is constructed from a tinned steel plate with copper strip and spring steel. Color-coded for quick and easy identification.

Item : PC33 series push-in wire connector, Dosenklemmen & compact terminal blocks
Electrical Rating: 24A, 450V, T85
Advantages :
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into the connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.

Cat. No.	Poles	Color	Dimension (LxWxH)	Clamping Area Wire Range	Approval
PC2252	2	Red	17.65 x 10.0 x 9.3 (mm)	0,5 - 2,5mm² Rigid Single-core Rigid Multi-core
PC2253	3	Orange	17.65 x 13.2 x 9.3 (mm)
PC2254	4	Yellow	17.65 x 16.8 x 9.3 (mm)
PC2255	5	Grey	17.65 x 20.4 x 9.3 (mm)

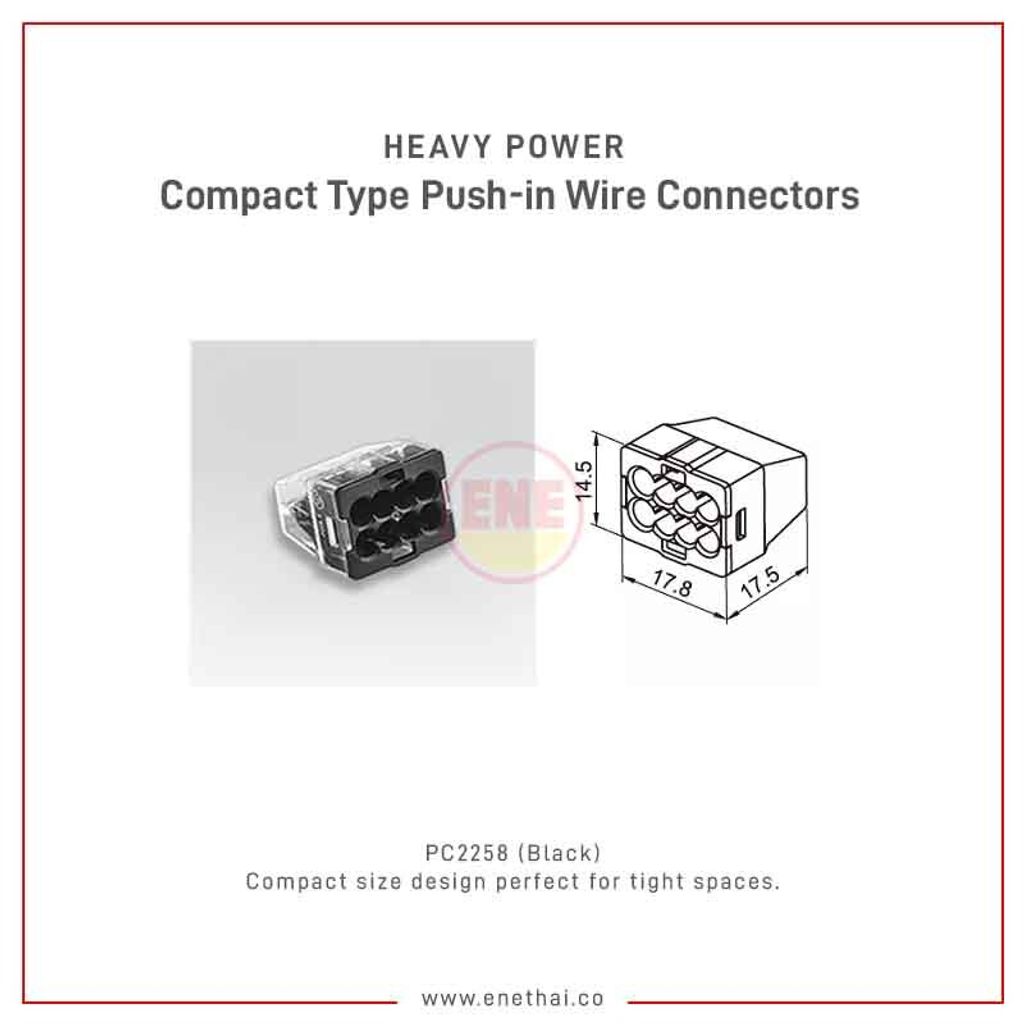

PC2258	8	Black	17.5 x 17.8 x 14.5 (mm)
