Heavy Power Closed-End Wire Connector

Waterproof Wire Connectors

Polyamide (PA), UL 94V-2 flame-retardant shell rated at 105°C (221°F). Two types of sleeve to choose from aluminum or tin-plated copper. Long neck provides a much more secure and easier installation Ideal for applications requiring vibration resistance. UL 486C Listed and CSA C22.2 No. 188 Certified Crimping tools are available upon request Provide convenient, safe, and fast installation.

Item: Waterproof Wire Connectors
Color: Nature
Sleeve: Tin-plated copper
Inside dia. of sleeve: 2.6 mm
Advantages:
● Vibration resistant.
● For use in electrical appliances, lighting, and household wiring.

Cat. No.	Dimension	Sleeve	Electrical Rating	Clamping Area Wire Range	Approval

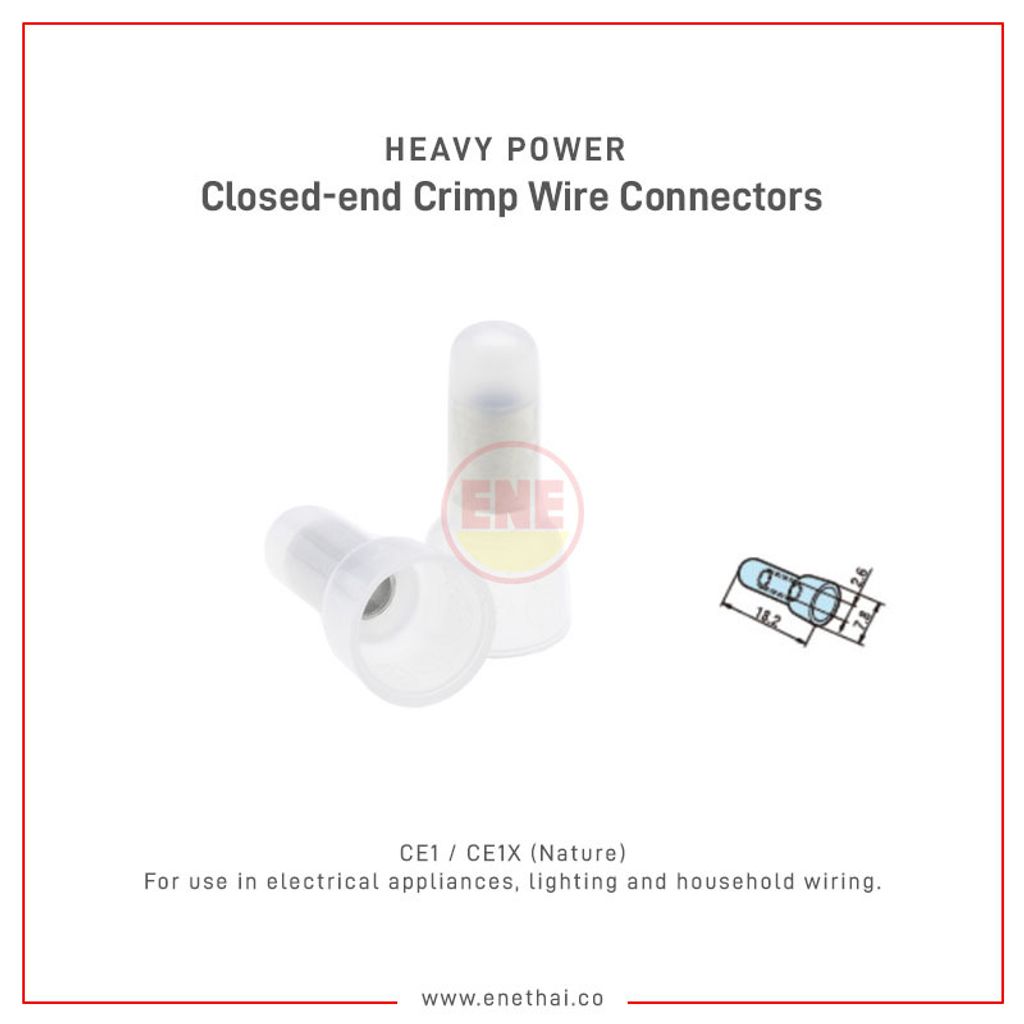

CE1		Tin-plated copper	300V Max. 105°C (221°F)	22-18 AWG, Cu Max. 2 #20 w/1 #18 Min. 2 #22
CE1X		Aluminum		22-18 AWG, Cu Max. 2 #20 w/1 #18 Min. 2 #22
CE2		Tin-plated copper		22-14 AWG, Cu Max. 4 #18 Min. 2 #22
CE2X		Aluminum		22-14 AWG, Cu Max. 4 #18 Min. 2 #22
CE5		Tin-plated copper		22-10 AWG, Cu Max. 1 #18 w/1 #16 w/2 #14 Min. 2 #22 w/2 #18
CE5X		Aluminum		20-12 AWG, Cu Max. 3 #14 Min. 3 #18
CE8		Tin-plated copper	300V Max. for UL 600V Max. for CSA & CQC 105°C (221°F)	16-10AWG, Cu Max. 2 #16 w/1 #10 Min. 2 #16 w/1 #12
